五十铃6WG1配件

  • 1-14400383-0 五十铃6WG1T 发动机增压器总成
  • 1-14400383-0 五十铃6WG1T 发动机增压器总成
1-14400383-0 五十铃6WG1T 发动机增压器总成1-14400383-0 五十铃6WG1T 发动机增压器总成

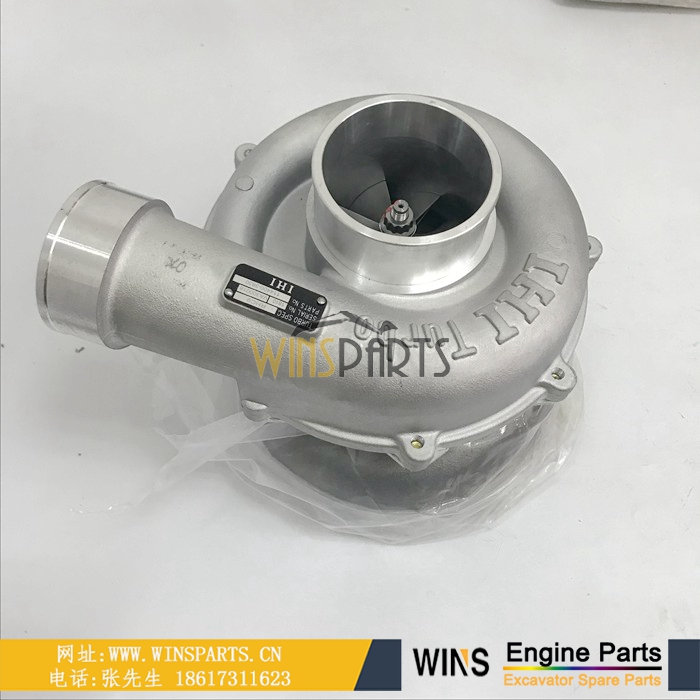

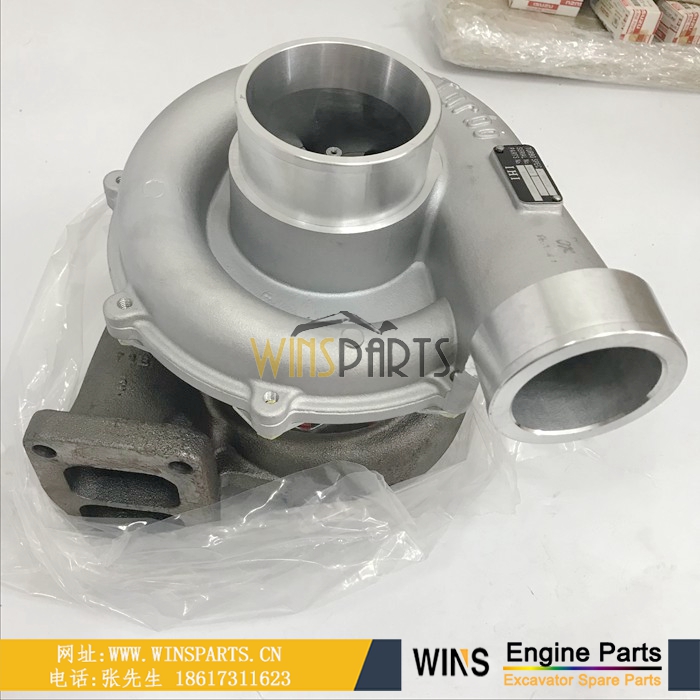

1-14400383-0 五十铃6WG1T 发动机增压器总成

  • 配件号码：1-14400383-0
  • 产品名称：增压器总成
  • 发动机号：6WG1T
  • 适用机械：ZX450 ZX470-5G ZX500LC

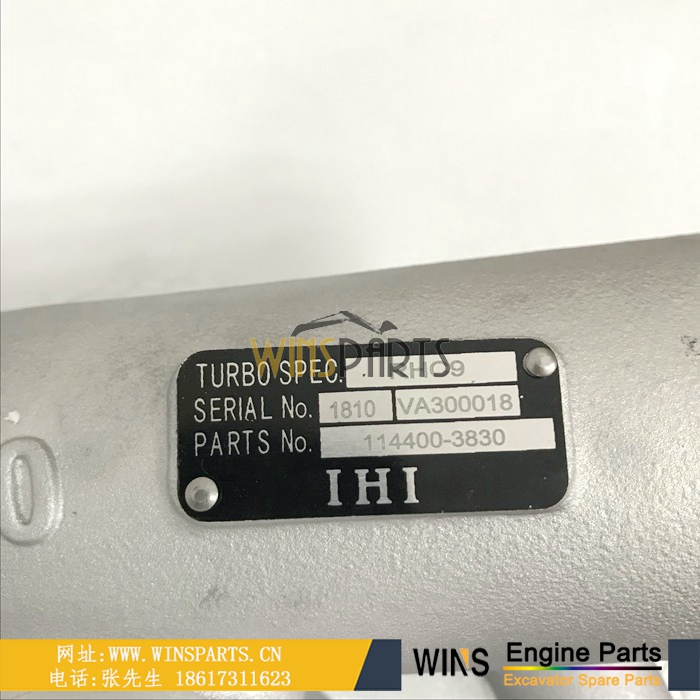

  • 产品描述：供应原装日本1-14400383-0 114400-3830 1-14400-383-1 日本石川岛IHI 6WG1T 发动机增压器总成日立ZX450 ZX470-5G ZX500LC挖掘机配件 VA300018 1144003830
  • 在线订购


产品信息

1-14400383-0 114400-3830 1-14400-383-1 日本石川岛IHI 6WG1T 发动机增压器总成日立ZX450 ZX470-5G ZX500LC挖掘机配件
产品零件号: 1-14400383-0 产品名称: 增压器总成
挖掘机号码: ZX450 ZX470-5G 挖掘机品牌: KOBELCO/CATERPILLAR/HITACHI
发动机号码: 6WG1T
 发动机品牌: ISUZU/HINO/MISTUBISHI

1-14400383-0 114400-3830 1-14400-383-1 日本石川岛IHI 6WG1T 发动机增压器总成<a href=https://www.winsparts.cn/riliwajueji.html target='_blank'>日立</a>ZX450 ZX470-5G ZX500LC挖掘机配件






件号(Part No) 数量(Qty) 品名(Part Name)
1-14400383-0 1-14400-383-0 114400-3830 1144003830 [1] TURBOCHARGER ASM
1-14145187-0 1-14145-187-0 114145-1870 1141451870 [1] GASKET; TURBOCHARGER TO EXH MANIF
1-14145203-0 1-14145-203-0 114145-2030 1141452030 [1] GASKET; TURBOCHARGER TO EXH DUCT
1-09500007-0 1-09500-007-0 109500-0070 1095000070 [6] WASHER; LK,TURBOCHARGER
1-09400027-0 1-09400-027-0 109400-0270 1094000270 [6] NUT; TURBOCHARGER
1-09420005-0 1-09420-005-0 109420-0050 1094200050 [8] NUT; TURBOCHARGER
1-09302106-0 1-09302-106-0 109302-1060 1093021060 [6] STUD; TURBOCHARGER
1-14181244-0 1-14181-244-0 114181-2440 1141812440 [1] PROTECTOR; HEAT,HOSE,AIR DUCT
1-14119442-2 1-14119-442-2 114119-4422 1141194422 [1] BRACKET; INL PIPE,ACL TO TURBOCHARGER
1-09360917-0 1-09360-917-0 109360-9170 1093609170 [1] HOSE; RUBBER,TURBOCHARGER TO INL COVER
1-09707198-0 1-09707-198-0 109707-1980 1097071980 [2] CLIP; RUBBER HOSE,TURBOCHARGER
1-09707114-0 1-09707-114-0 109707-1140 1097071140 [2] CLIP; RUBBER HOSE,TURBOCHARGER
1-09707144-0 1-09707-144-0 109707-1440 1097071440 [1] CLIP; HOSE,ACL
-28181050-0 -28181-050-0 28181-0500 281810500 [2] BOLT; AIR DUCT
-28051050-0 -28051-050-0 28051-0500 280510500 [2] BOLT; AIR DUCT
1-14134352-0 1-14134-352-0 114134-3520 1141343520 [1] DUCT; AIR
1-14415128-0 1-14415-128-0 114415-1280 1144151280 [1] HOUSING; TURBINE,TURBOCHARGER
1-14451076-0 1-14451-076-0 114451-0760 1144510760 [1] IMPELLER; TURBOCHARGER
1-14411073-0 1-14411-073-0 114411-0730 1144110730 [1] HOUSING; BRG,TURBOCHARGER
1-14425017-0 1-14425-017-0 114425-0170 1144250170 [1] PROTECTOR; HEAT,TURBOCHARGER
1-14450056-0 1-14450-056-0 114450-0560 1144500560 [1] SHAFT; TURBINE,TURBOCHARGER
1-14414128-0 1-14414-128-0 114414-1280 1144141280 [1] HOUSING; BLOWER,TURBOCHARGER
1-14453069-0 1-14453-069-0 114453-0690 1144530690 [1] REPAIR KIT; TURBOCHARGER
1-09400119-0 1-09400-119-0 109400-1190 1094001190 [1] NUT; LK,TURBINE SHAFT TO IMPELLER,TC
1-14455026-0 1-14455-026-0 114455-0260 1144550260 [4] RING; JOURNAL BRG,TURBOCHARGER
1-09100015-0 1-09100-015-0 109100-0150 1091000150 [4] SCREW; THRUST BRG,TURBOCHARGER
1-14453070-0 1-14453-070-0 114453-0700 1144530700 [1] BUSHING; THRUST,TURBOCHARGER
1-14455036-0 1-14455-036-0 114455-0360 1144550360 [1] THROWER; OIL,TURBOCHARGER
1-14453027-0 1-14453-027-0 114453-0270 1144530270 [1] RING; SEAL,TURBINE SIDE,TURBOCHARGER
1-14453025-0 1-14453-025-0 114453-0250 1144530250 [1] RING; SEAL,BLOWER SIDE,TURBOCHARGER
1-14453026-0 1-14453-026-0 114453-0260 1144530260 [1] RING; SEAL,BLOWER SIDE,TURBOCHARGER
1-09000405-0 1-09000-405-0 109000-4050 1090004050 [10] BOLT; LK PLATE,TURBINE HSG,TURBOCHARGER
1-14421018-0 1-14421-018-0 114421-0180 1144210180 [10] PLATE; LK,TURBINE HSG,TURBOCHARGER
1-14421016-0 1-14421-016-0 114421-0160 1144210160 [8] PLATE; LK,BLOWER HSG,TURBOCHARGER
1-09000404-0 1-09000-404-0 109000-4040 1090004040 [8] BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
1-14425018-0 1-14425-018-0 114425-0180 1144250180 [1] PLATE; SEAL,TURBOCHARGER
1-09100014-0 1-09100-014-0 109100-0140 1091000140 [4] SCREW; SEAL PLATE,TURBOCHARGER
1-11210632-9 1-11210-632-9 111210-6329 1112106329 [1] BLOCK ASM; CYL
8-98003655-1 8-98003-655-1 898003-6551 8980036551 [1] BLOCK ASM; CYL
1-87812773-1 1-87812-773-1 187812-7731 1878127731 [6] LINER SET; ENG CYL
1-87812774-1 1-87812-774-1 187812-7741 1878127741 [6] LINER SET; ENG CYL
1-11261333-2 1-11261-333-2 111261-3332 1112613332 [6] LINER; C/BL
1-11261334-2 1-11261-334-2 111261-3342 1112613342 [6] LINER; C/BL
8-94325506-1 8-94325-506-1 894325-5061 8943255061 [2] PIN; INJ PUMP BRKT
1-13160030-3 1-13160-030-3 113160-0303 1131600303 [1] VALVE; OIL RELIEF
1-09623297-0 1-09623-297-0 109623-2970 1096232970 [1] GASKET; RELIEF VLV
1-09600065-1 1-09600-065-1 109600-0651 1096000651 [2] CUP; SEALING,WATER JACKET
9-08151018-0 9-08151-018-0 908151-0180 9081510180 [2] PIN; TIMING GEAR CASE
1-13349014-0 1-13349-014-0 113349-0140 1133490140 [6] BOLT; JOINT,OIL JET,PISTON COOLING
1-13342139-1 1-13342-139-1 113342-1391 1133421391 [6] JET; OIL,PISTON COOLING
9-08151428-0 9-08151-428-0 908151-4280 9081514280 [2] PIN; FLYWHEEL HSG
1-09669130-0 1-09669-130-0 109669-1300 1096691300 [1] ADAPTER; OIL PRESSURE SWITCH
8-94399858-2 8-94399-858-2 894399-8582 8943998582 [1] ADAPTER; OIL PRESSURE SWITCH
-28186015-0 -28186-015-0 28186-0150 281860150 [2] BOLT; BRKT
-28156015-0 -28156-015-0 28156-0150 281560150 [2] BOLT; BRKT
1-09070151-0 1-09070-151-0 109070-1510 1090701510 [14] BOLT; CRANKCASE
1-09070087-2 1-09070-087-2 109070-0872 1090700872 [28] BOLT; CRANKCASE
1-09740068-1 1-09740-068-1 109740-0681 1097400681 [2] PIN; CRANKCASE
1-09630083-0 1-09630-083-0 109630-0830 1096300830 [1] GASKET; PLUG,C/BL SIDE
1-09630084-0 1-09630-084-0 109630-0840 1096300840 [1] GASKET; PLUG,C/BL SIDE
1-09630089-0 1-09630-089-0 109630-0890 1096300890 [1] GASKET; PLUG,C/BL SIDE
1-09630141-0 1-09630-141-0 109630-1410 1096301410 [2] GASKET; PLUG,C/BL SIDE
1-09749025-1 1-09749-025-1 109749-0251 1097490251 [2] PIN; THRUST METAL,CR/SHF
9-08160510-0 9-08160-510-0 908160-5100 9081605100 [2] PIN; THRUST METAL,CR/SHF
1-09630085-0 1-09630-085-0 109630-0850 1096300850 [1] GASKET; ADAPTER
1-09630141-0 1-09630-141-0 109630-1410 1096301410 [1] GASKET; ADAPTER
1-23335532-0 1-23335-532-0 123335-5320 1233355320 [1] BRACKET; ENG CONT WIRE
1-09604035-0 1-09604-035-0 109604-0350 1096040350 [1] PLUG; C/BL,SIDE
1-09604094-0 1-09604-094-0 109604-0940 1096040940 [1] PLUG; C/BL,SIDE
1-09604095-0 1-09604-095-0 109604-0950 1096040950 [1] PLUG; C/BL,SIDE
8-98047054-0 8-98047-054-0 898047-0540 8980470540 [1] PLUG; C/BL,SIDE
1-09604098-0 1-09604-098-0 109604-0980 1096040980 [1] PLUG; HOLE,OIL LEVEL GAUGE





产品介绍

<a href=http://www.winsparts.cn/Engine-hino.html target='_blank'>日野</a>发动机配件日本kobelco挖掘机配件<a href=http://www.winsparts.cn target='_blank'>神钢挖掘机</a>零件挖掘机发动机零件日野hino发动机配件<a href=https://www.winsparts.cn/Engine-Isuzu.html target='_blank'>五十铃</a>发动机配件


本公司成立于1998年，一直致力于工程机械纯正零件的批发与销售公司，专注批发零售进口神钢挖掘机发动机配件销售的供应商，公司具有完善的日本进口纯正原厂渠道，一手货源，省去中间商差价；十余年来公司秉承“产品第一，优质服务，客户至上，诚实守信”的经验销售原则，以完备齐全的零配件，实惠的价格的服务于国内外广大的工程机械同行。
公司主营神钢挖掘机KOBELCO纯正配件，及日本原厂三菱重工，日野，五十铃发动机纯正原装配件：发动机缸体，缸盖，曲轴，凸轮轴，连杆，活塞缸套组件，喷油器，柴油泵，进排气门、进排气门座圈、气门油封导管、气门弹簧、等等原装发动机配件；
液压配件: 泵胆平面、配流盘、柱塞、九孔板、传动轴、先导泵、止推板、摇摆座及总成、球头、提升器等液压件；
电器件：发电机、启动马达、油门马达、空调件、电脑板、显示屏、电磁阀、传感器、感应器、熄火开关、点火开关等原厂电器件；
底盘件：链条总成、链板、螺丝、连接销、支重轮、托链轮、引导轮、驱动齿、斗齿、齿根、挖斗等底盘件
日野：J05E,J08E,P11C.
三菱: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
五十铃:4HK1,4JJ1,4LE1,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
神钢挖掘机：SK60,SK75,SK130-8,SK140-8,SK200-6,-8,SK250-6,-8,SK330-6,-8,SK460-8.
欢迎广大新老客户前来洽谈，咨询！
