件号(Part No)
|
数量(Qty)
|
品名(Part Name)
|
|
8-97253028-1
|
8-97253-028-1
|
897253-0281
|
8972530281
|
[1]
|

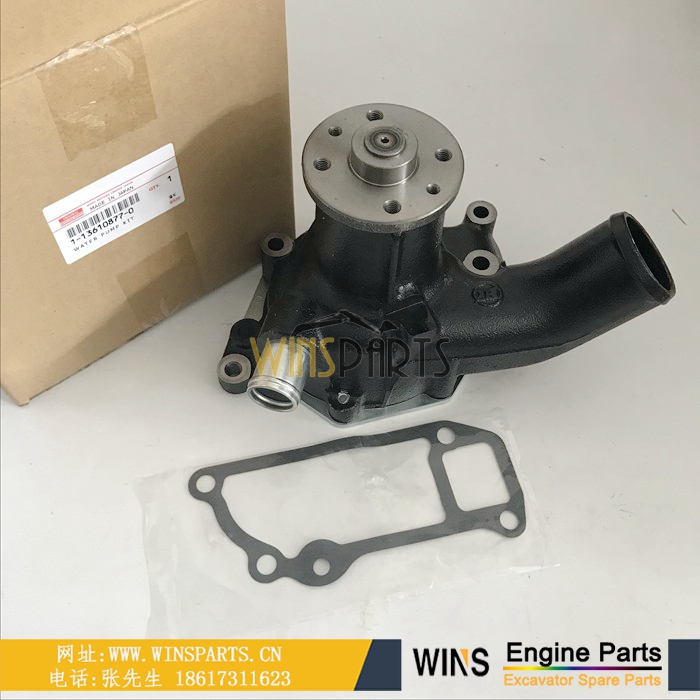

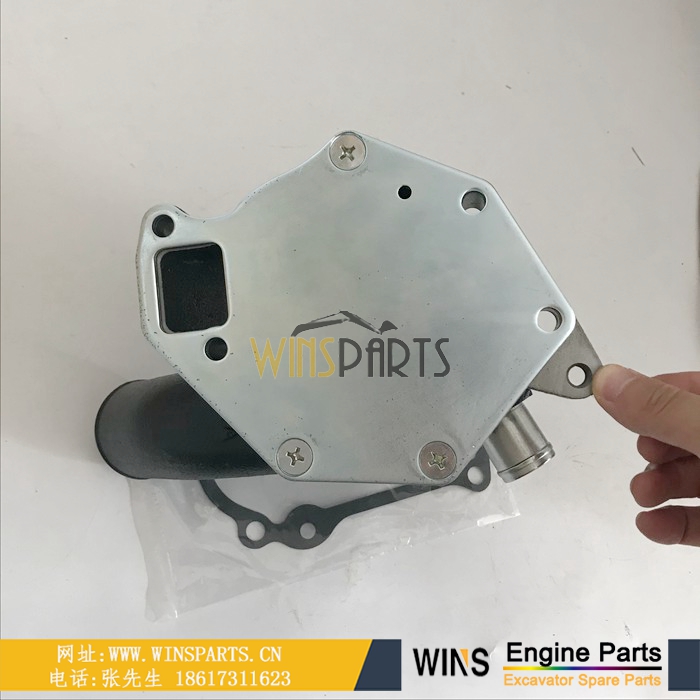

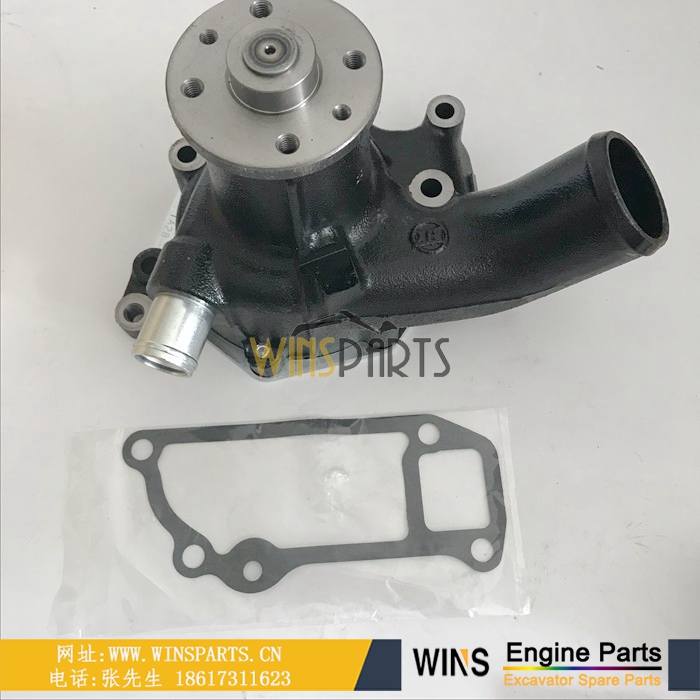

PUMP ASM; WATER,W/GASKET
|
|
8-94370661-0
|
8-94370-661-0
|
894370-6610
|
8943706610
|
[1]
|
GASKET; PUMP TO C/BL
|
|
5-87814320-0
|
5-87814-320-0
|
587814-3200
|
5878143200
|
[1]
|
REPAIR KIT; WATER PUMP
|
|
1-13641191-0
|
1-13641-191-0
|
113641-1910
|
1136411910
|
[1]
|
PULLEY; WATER PUMP
|
|
9-09180152-0
|
9-09180-152-0
|
909180-1520
|
9091801520
|
[1]
|
RING; SNAP,WATER PUMP
|
|
5-13634002-0
|
5-13634-002-0
|
513634-0020
|
5136340020
|
[1]
|
SPACER; BRG,WATER PUMP
|
|
5-09625055-0
|
5-09625-055-0
|
509625-0550
|
5096250550
|
[1]
|
SEAL; OIL,WATER PUMP
|
|
8-97232250-0
|
8-97232-250-0
|
897232-2500
|
8972322500
|
[1]
|
IMPELLER; WATER PUMP
|
|
8-97232248-0
|
8-97232-248-0
|
897232-2480
|
8972322480
|
[1]
|
GASKET; COVER TO BODY
|
|
8-97232247-0
|
8-97232-247-0
|
897232-2470
|
8972322470
|
[1]
|
COVER; WATER PUMP
|
|
5-13642007-2
|
5-13642-007-2
|
513642-0072
|
5136420072
|
[1]
|
CENTER; WATER PUMP
|
|
5-13639001-0
|
5-13639-001-0
|
513639-0010
|
5136390010
|
[1]
|
COVER; DUST,WATER PUMP
|
|
5-09800051-0
|
5-09800-051-0
|
509800-0510
|
5098000510
|
[1]
|
BEARING; WATER PUMP
|
|
5-09800050-0
|
5-09800-050-0
|
509800-0500
|
5098000500
|
[1]
|
BEARING; WATER PUMP
|
|
1-09800170-0
|
1-09800-170-0
|
109800-1700
|
1098001700
|
[1]
|
BEARING; WATER PUMP
|
|
1-09503070-0
|
1-09503-070-0
|
109503-0700
|
1095030700
|
[1]
|
WASHER; WATER PUMP
|
|
1-13631074-0
|
1-13631-074-0
|
113631-0740
|
1136310740
|
[1]
|
SHAFT; WATER PUMP
|
|
9-09952143-0
|
9-09952-143-0
|
909952-1430
|
9099521430
|
[1]
|
RING; SNAP,WATER PUMP SHAFT
|
|
8-97223660-0
|
8-97223-660-0
|
897223-6600
|
8972236600
|
[1]
|
PIPE; SUCTION,INL
|
|
8-97249895-1
|
8-97249-895-1
|
897249-8951
|
8972498951
|
[1]
|
PIPE; SUCTION,INL
|
|
8-97232249-0
|
8-97232-249-0
|
897232-2490
|
8972322490
|
[1]
|
SEAL UNIT; WATER PUMP
|
|
9-03090820-0
|
9-03090-820-0
|
903090-8200
|
9030908200
|
[3]
|
SCREW; COVER TO BODY,WATER PUMP
|
|
1-13200842-0
|
1-13200-842-0
|
113200-8420
|
1132008420
|
[1]
|
SEDIMENTER; FUEL
|
|
8-97218647-0
|
8-97218-647-0
|
897218-6470
|
8972186470
|
[1]
|
SEDIMENTER; FUEL
|
|
8-97289117-0
|
8-97289-117-0
|
897289-1170
|
8972891170
|
[1]
|
COVER; UPR,SEDIMENTER ASM
|
|
1-13212140-1
|
1-13212-140-1
|
113212-1401
|
1132121401
|
[1]
|
COVER; UPR,SEDIMENTER ASM
|
|
8-94155183-0
|
8-94155-183-0
|
894155-1830
|
8941551830
|
[1]
|
GASKET; UPR COVER,SEDIMENTER
|
|
5-09623070-0
|
5-09623-070-0
|
509623-0700
|
5096230700
|
[1]
|
GASKET; UPR COVER,SEDIMENTER
|
|
8-97213473-0
|
8-97213-473-0
|
897213-4730
|
8972134730
|
[1]
|
PLUG; DRAIN,SEDIMENTER
|
|
5-13219020-0
|
5-13219-020-0
|
513219-0200
|
5132190200
|
[1]
|
PLUG; DRAIN,SEDIMENTER
|
|
8-97213474-0
|
8-97213-474-0
|
897213-4740
|
8972134740
|
[1]
|
GASKET; DRAIN PLUG & CONNECTOR
|
|
5-09630024-0
|
5-09630-024-0
|
509630-0240
|
5096300240
|
[1]
|
GASKET; DRAIN PLUG & CONNECTOR
|
|
1-13219221-0
|
1-13219-221-0
|
113219-2210
|
1132192210
|
[1]
|
PLUG; DRAIN,FUEL FILTER
|
|
8-97289132-0
|
8-97289-132-0
|
897289-1320
|
8972891320
|
[1]
|
PLUG; DRAIN,FUEL FILTER
|
|
8-97289133-0
|
8-97289-133-0
|
897289-1330
|
8972891330
|
[1]
|
GASKET; DRAIN PLUG
|
|
8-94416377-0
|
8-94416-377-0
|
894416-3770
|
8944163770
|
[1]
|
GASKET; DRAIN PLUG
|
|
8-97289131-0
|
8-97289-131-0
|
897289-1310
|
8972891310
|
[1]
|
RING; BODY TO CASE
|
|
5-13619022-1
|
5-13619-022-1
|
513619-0221
|
5136190221
|
[1]
|
RING; BODY TO CASE
|
|
8-97289125-0
|
8-97289-125-0
|
897289-1250
|
8972891250
|
[1]
|
FLOAT; SEDIMENTER
|
|
5-13219021-0
|
5-13219-021-0
|
513219-0210
|
5132190210
|
[1]
|
FLOAT; SEDIMENTER
|
|
8-97289136-0
|
8-97289-136-0
|
897289-1360
|
8972891360
|
[1]
|
HOSE; SEDIMENTER
|
|
8-94338701-0
|
8-94338-701-0
|
894338-7010
|
8943387010
|
[1]
|
HOSE; SEDIMENTER
|
|
8-97289134-0
|
8-97289-134-0
|
897289-1340
|
8972891340
|
[1]
|
PLATE; BAFFLE
|
|
9-09572014-0
|
9-09572-014-0
|
909572-0140
|
9095720140
|
[4]
|
GASKET; FUEL PIPE
|
|
1-09630085-0
|
1-09630-085-0
|
109630-0850
|
1096300850
|
[4]
|
GASKET; FUEL PIPE
|
|
1-09700759-0
|
1-09700-759-0
|
109700-7590
|
1097007590
|
[2]
|
CLIP; FUEL PIPE
|
|
1-09700760-0
|
1-09700-760-0
|
109700-7600
|
1097007600
|
[2]
|
CLIP; FUEL PIPE
|
|
8-97289118-0
|
8-97289-118-0
|
897289-1180
|
8972891180
|
[1]
|
CASE; FUEL SEDIMENTER
|
|
1-13211211-0
|
1-13211-211-0
|
113211-2110
|
1132112110
|
[1]
|
CASE; FUEL SEDIMENTER
|
|
1-09675086-0
|
1-09675-086-0
|
109675-0860
|
1096750860
|
[1]
|
BOLT; EYE,FUEL FILTER
|
|
8-97289135-0
|
8-97289-135-0
|
897289-1350
|
8972891350
|
[1]
|
ADAPTER
|
|
8-97247089-0
|
8-97247-089-0
|
897247-0890
|
8972470890
|
[1]
|
GUIDE; FAN
|
|
-28081045-0
|
-28081-045-0
|
28081-0450
|
280810450
|
[3]
|
BOLT; FAN GUIDE
|
|
-28051045-0
|
-28051-045-0
|
28051-0450
|
280510450
|
[3]
|
BOLT; FAN GUIDE
|
|
8-97222234-1
|
8-97222-234-1
|
897222-2341
|
8972222341
|
[1]
|
BRACKET; FAN GUIDE
|
|
| |
