神钢SK330-8配件

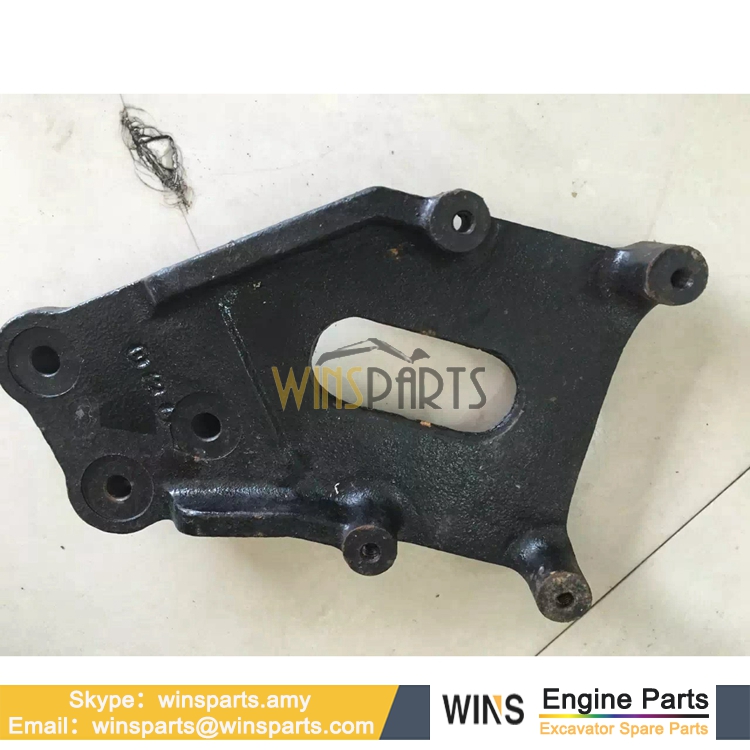

LC20M01142P1神钢挖掘机空调支架

配件号码：LC20M01142P1
产品名称：空调支架
发动机号：J08E
适用机械：SK330-8 SK350-8 SK350-9
产品描述：LC20M01142P1神钢SK350-9 SK330-8 SK300挖掘机空调支架空调系统配件
在线订购

产品信息

LC20M01142P1神钢SK350-9 SK330-8 SK300挖掘机空调支架空调系统配件

产品零件号:

LC20M01142P1

产品名称:

空调支架

挖掘机号码:

SK330-8 SK350-8 SK350-9

挖掘机品牌:

KOBELCO/CATERPILLAR/HITACHI

发动机号码:

J08E

发动机品牌:

ISUZU/HINO/MISTUBISHI

LC20M01142P1 神钢空调支架SK350-9 SK330-8

<a href=https://www.winsparts.cn/riliwajueji.html target='_blank'>日立</a>神钢卡特挖掘机空调系统总成配件

编号（REF）	数量(Qty)	件号(Part No)	品名(Part Name)
60	2	ZM73C10020	BOLT M10x1.50x20mm (Incls. Washer)
59	1	2418Z1333D13	RIGID TUBE 19.5mm ID x 23.8mm OD x 100mm Length, Protective Plastic
58	4	ZW16P06000	WASHER ID 06 x OD 11.5 x Th 1.6mm
57	4	ZS18C06050	SCREW M06x1.0x50mm
56	1	YN20M01544P1	GASKET GROMMET
55	1	YN20M01676P1	GASKET GROMMET
54	2	ZS18C08020	SCREW M08x1.25x20mm
53	1	LC20M01188P1	BRACKET BRACKET
52	2	YW05P01025P1	CLIP Clamp -- Ø54x92mm Long
51	1	YN13E01375P1	CLIP Anchor Wire Ties
50	4	ZM73C08025	BOLT M08x1.25x25mm (Incls. Washer)
49	1	LC20M01126P1	ELEC CONNECTOR CONNECTOR
40	1	YN52S00044P1	SENSOR Sunshine
39	1	YN50V01015P3	CAB FILTER Air-Conditioner Element (Outer), 201x187x17mm
35	1	LC96V00042F1	RECEIVER-DRYER DRIER ASSY,AIR - see Figure 1.079(00)
34	1	YN20M01675P1	CONDENSER CONDENSOR
33	1	YN20M01559F1	PULLEY PULLEY ASSY
32	1	YX91V00001F1	COMPRESSOR
30	1	YN20M01468P1	PANEL Temperature Control
27	1	YN20M00113F1	AIR CONDITIONER CONDITIONER ASSY,AIR
25	13	PY01P01043D4	CLIP Wire Ties -- 249mm Long
24	3	ZC48X24014	CLIP Clamp, Double -- Ø24x85mm Long
23	3	ZW16P10000	WASHER ID 10.5 x OD 21 x Th 2.0mm
22	3	ZS18C10050	SCREW M10x1.50x50mm
20	2	ZC16X02400	CLIP
18	1	YN20M01492D6	HOSE
17	1	LC20M01155P1	BRACKET, SUPPORTING BRACKET (HINO PART NO. 888444-E0010)
16	1	YJ21M01003D1	FLEXIBLE HOSE ID 22.1 x OD 27 x 1800mm
15	1	2418Z1333D25	TUBE 19.5mm ID x 23.8mm OD x 180mm Length, Protective Plastic
14	1	2418Z1333D26	ELBOW 19.5mm ID x 23.8mm OD x 2100mm Length, Protective Plastic
13	1	2418Z1333D35	TUBE 19.5mm ID x 23.8mm OD x 1800mm Length, Protective Plastic
12	1	YN20M01046DN	TUBE Protective Plastic
11	1	YN20M01094DJ	RIGID TUBE 25mm ID x 30mm OD x 2450mm Length
10	6	ZW16P08000	WASHER ID 08 x OD 17 x Th 1.6mm
9	4	ZS18C08100	SCREW Screw -- M08x1.25x100mm
7	2	ZM73C06020	BOLT M06x1.0x20mm (Incls. Washer)
6	7	ZM73C10025	BOLT M10x1.50x25mm (Incls. Washer)
5	4	ZC16X02000	CLIP Clamp, Hose -- Min 15 x Max 25mm
4	1	YN20M01494D2	BELT 1321mm Long (52 in)
3	2	LC20M01177P1	BRACKET BRACKET
2	1	R18T0026D37	HOSE ID 12 x OD 22 x 3050mm
1	1	R18T0026D29	HOSE
8	5	ZM73C08020	BOLT M08x1.25x20mm (Incls. Washer)
21	1	LC20M01142P1	BRACKET BRACKET
6-2	1	2445Z1604D5	O-RING 5/8 in
6	1	YN20M01594F1	TUBE ASSY
5	1	YN50V01014P1	CAB FILTER Air-Conditioner Element (Inner), 478.5x114x31mm
4	1	YT20M00009S005	SCREW
3	2	24100U1176S5	CLAMP
2	2	LC20M01014D2	HOSE ID 11 x OD 15 x 360mm
1	1	YN20M00107F2	AIR CONDITIONING ASSY
6-3	1	2445Z1604D6	O-RING 08mm
