产品信息
|

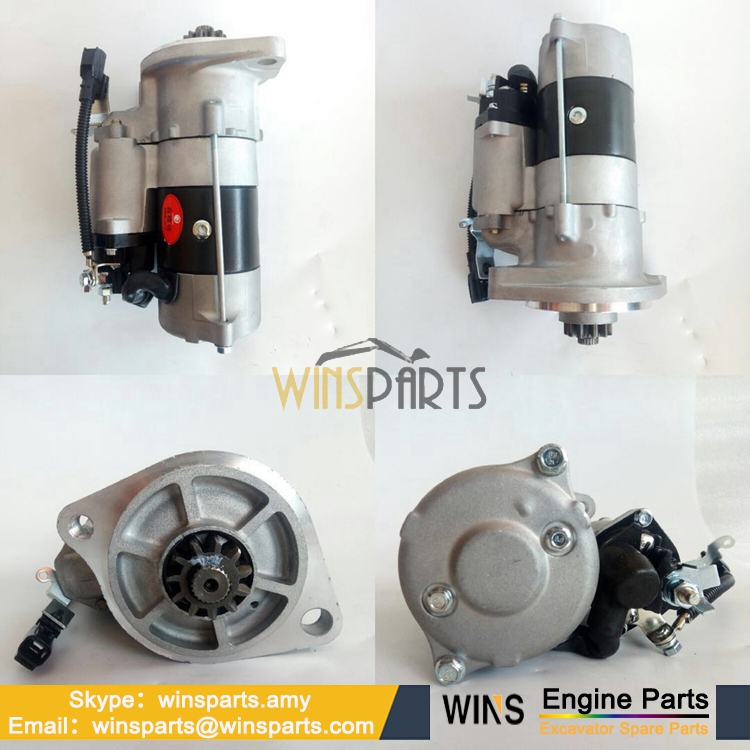

VH28100E0080 281002894A 日野J08E启动马达24V-5KW 用于神钢SK330-8 SK350-8 SK350-9 SK350-10 挖掘机配件
|
|
产品零件号:
|
VH28100E0080 281002894A
|
产品名称:
|
启动马达
|
|
挖掘机号码:
|
SK330-8 SK350-8 SK350-9
|
挖掘机品牌:
|
KOBELCO/CATERPILLAR/HITACHI
|
|
发动机号码:
|
J08E
|
发动机品牌:
|
ISUZU/HINO/MISTUBISHI
|
|
|
编号（REF）
|
数量(Qty)
|
件号(Part No)
|
品名(Part Name)
|
|
28255
|
1
|
282551040A
|
SHAFT ASSY, START
|
|
28253A
|
1
|
282531080A
|
GEAR
|
|
28253
|
3
|
282531070A
|
GEAR
|
|
28252
|
1
|
282521880A
|
BEARING
|
|
28251
|
1
|
282511090A
|
PINION START
|
|
|
|
|
W/TERMINAL
|
|
28240
|
1
|
282401680A
|
COVER ASSY COVER ASSY,CONTACTOR
|
|
|
|
|
SERVICE
|
|
28227
|
AR
|
28227-1020A
|
STARTER REPAIR MULTEMP AC-N
|
|
|
|
|
SERVICE
|
|
28227
|
AR
|
28227-1010A
|
STARTER REPAIR, PYRONOC NO.2
|
|
28199
|
1
|
281991100A
|
PROTECTION DUST START
|
|
28171
|
1
|
281711210A
|
HYD CONNECTOR W/LEAD WIRE
|
|
28168A
|
2
|
281681370A
|
RING RETAINER
|
|
28168
|
1
|
281681400A
|
RING RETAINER
|
|
28160
|
1
|
281601760A
|
ARMATURE ASSY, START
|
|
28150
|
1
|
281502554A
|
SWITCH ASSY ASSY, START MAGNET
|
|
28143
|
4
|
281431200A
|
SPRING START BRUSH
|
|
28142A
|
1
|
281421540A
|
COMMUTATOR BRUSH START
|
|
28142
|
1
|
281421530A
|
COMMUTATOR BRUSH START
|
|
28140
|
1
|
281401680A
|
HOLDER ASSY, START BRUSH
|
|
28138
|
2
|
281381370A
|
PACKING
|
|
28133
|
1
|
281332400A
|
FRAME COMMUTATOR END
|
|
28120
|
1
|
28120-1900B
|
ASSY, START
|
|
28118F
|
1
|
281181570A
|
PLATE
|
|
28118E
|
1
|
281181561A
|
PLATE
|
|
28118D
|
1
|
281181550A
|
PLATE
|
|
28118C
|
1
|
281181540A
|
PLATE
|
|
28118B
|
1
|
28118-1530B
|
|
|
28118A
|
1
|
281181520A
|
PLATE
|
|
28117A
|
1
|
281171310A
|
PACKING
|
|
28117
|
1
|
281171300A
|
PACKING
|
|
28115
|
1
|
281152231A
|
HOUSING START DRIVE
|
|
28113
|
1
|
281131360A
|
LEVER PINION DRIVE
|
|
28112E
|
2
|
281122610A
|
BOLT HOUSING SET
|
|
28112A
|
2
|
281122000A
|
BOLT HOUSING SET
|
|
28112
|
2
|
281122620A
|
BOLT HOUSING SET
|
|
28111A
|
1
|
281111480A
|
HOUSING BOSH HOUSING
|
|
28111
|
1
|
281111470A
|
HOUSING BOSH HOUSING
|
|
28100
|
1
|
281002894A
|
STARTER MOTOR ASSY 24V-5KW
|
|
28011
|
1
|
280111640A
|
CLIP SUB ASSY START
|
|
|
|
NO -- VH
|
STARTING MOTOR
|
|
28118
|
1
|
281181450A
|
PLATE
|
|
18
|
1
|
VHSZ91024047
|
BOLT
|
|
17
|
1
|
VHSZ11908033
|
BOLT
|
|
16
|
1
|
VHSZ10514031
|
FLANGE BOLT
|
|
15
|
1
|
VHS1205E0370
|
BRACKET Alternator
|
|
14
|
1
|
VH88594E0080
|
BELT Alternator
|
|
12
|
1
|
VH27060E0040
|
ALTERNATOR W/Regulator, 24V-60A, See Figure 08-012-04
|
|
11
|
1
|
VHS125114170
|
BRACKET Gen.
|
|
10
|
1
|
VH12511E0780
|
BRACKET Alternator
|
|
9
|
1
|
VHSL62101036
|
WASHER Plain
|
|
8
|
2
|
VHSL61101427
|
WASHER Plain
|
|
7
|
1
|
VHSL51101435
|
WASHER, LOCK
|
|
6
|
1
|
VHSL15041414
|
NUT
|
|
5
|
1
|
VHSL15041010
|
NUT
|
|
4
|
1
|
VHSH55211235
|
FLANGE BOLT
|
|
3
|
1
|
VHSH55211065
|
FLANGE BOLT
|
|
2
|
4
|
VHSH55211035
|
FLANGE BOLT
|
|
1
|
1
|
VHSH12206440
|
BOLT
|
|
13
|
1
|
VH28100E0080
|
STARTER MOTOR Assy., 24V-5Kw, See Figure 08-012-05
|
|
37
|
1
|
VHS282551040
|
SHAFT Assy., Start
|
|
36
|
1
|
VHS282531080
|
GEAR
|
|
35
|
3
|
VHS282531070
|
GEAR
|
|
34
|
1
|
VHS282521880
|
BEARING
|
|
33
|
1
|
VHS282511100
|
PINION Start, Includes Ref. 29
|
|
32
|
AR
|
VHS282271020
|
GREASE Starter Repair Service, Multemp Ac-N
|
|
32
|
AR
|
VHS282271010
|
GREASE Starter Repair Service, Pyronoc No.2
|
|
31
|
1
|
VHS281991100
|
PROTECTOR Dust Start
|
|
30
|
1
|
VHS281711210
|
HYD CONNECTOR W/Lead Wire
|
|
29
|
1
|
VHS281681400
|
RING Retainer
|
|
28
|
2
|
VHS281681370
|
RING Retainer
|
|
27
|
1
|
VHS281601760
|
ARMATURE Assy., Start, Includes Ref. 34
|
|
26
|
1
|
VH28150EV050
|
SWITCH ASSY Main, Includes Ref. 4
|
|
25
|
4
|
VHS281431200
|
SPRING Start Brush
|
|
24
|
1
|
VHS281421540
|
BRUSH Start
|
|
23
|
1
|
VHS281421530
|
BRUSH Start
|
|
22
|
1
|
VHS281401680
|
HOLDER Assy., Start Brush, Includes Ref. 25
|
|
21
|
2
|
VHS281381370
|
PACKING
|
|
20
|
1
|
VHS281332400
|
FRAME Commutator End
|
|
19
|
1
|
VH28120EV020
|
YOKE Starter, Includes Ref. 23-24
|
|
18
|
1
|
VHS281181570
|
PLATE
|
|
17
|
1
|
VHS281181561
|
PLATE
|
|
16
|
1
|
VHS281181550
|
PLATE
|
|
15
|
1
|
VHS281181540
|
PLATE
|
|
14
|
1
|
VHS281181530
|
PLATE
|
|
13
|
1
|
VHS281181520
|
PLATE
|
|
12
|
1
|
VHS281181450
|
PLATE
|
|
11
|
1
|
VHS281171310
|
PACKING
|
|
10
|
1
|
VHS281171300
|
PACKING
|
|
9
|
1
|
VHS281152231
|
HOUSING Start Drive, Includes Ref. 3,10, 31
|
|
7
|
2
|
VHS281122620
|
BOLT Housing Set
|
|
6
|
2
|
VHS281122610
|
BOLT Housing Set
|
|
5
|
2
|
VHS281122000
|
BOLT Housing Set
|
|
4
|
1
|
VHS281111480
|
DRIVE Bosh, Housing
|
|
3
|
1
|
VHS281111470
|
DRIVE Bosh, Housing
|
|
2
|
1
|
VH28100E0080
|
STARTER MOTOR Assy., Includes Ref. 1, 3-37, 24V-5Kw
|
|
1
|
1
|
VHS280111640
|
CLUTCH Sub Assy., Start
|
|
8
|
1
|
VHS281131360
|
LEVER Pinion Drive
|
|
产品介绍
本公司成立于1998年，一直致力于工程机械纯正零件的批发与销售公司，专注批发零售进口神钢挖掘机发动机配件销售的供应商，公司具有完善的日本进口纯正原厂渠道，一手货源，省去中间商差价；十余年来公司秉承“产品第一，优质服务，客户至上，诚实守信”的经验销售原则，以完备齐全的零配件，实惠的价格的服务于国内外广大的工程机械同行。
公司主营神钢挖掘机KOBELCO纯正配件，及日本原厂三菱重工，日野，五十铃发动机纯正原装配件：发动机缸体，缸盖，曲轴，凸轮轴，连杆，活塞缸套组件，喷油器，柴油泵，进排气门、进排气门座圈、气门油封导管、气门弹簧、等等原装发动机配件；
液压配件: 泵胆平面、配流盘、柱塞、九孔板、传动轴、先导泵、止推板、摇摆座及总成、球头、提升器等液压件；
电器件：发电机、启动马达、油门马达、空调件、电脑板、显示屏、电磁阀、传感器、感应器、熄火开关、点火开关等原厂电器件；
底盘件：链条总成、链板、螺丝、连接销、支重轮、托链轮、引导轮、驱动齿、斗齿、齿根、挖斗等底盘件
日野：J05E,J08E,P11C.
三菱: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
五十铃:4HK1,4JJ1,4LE1,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
神钢挖掘机：SK60,SK75,SK130-8,SK140-8,SK200-6,-8,SK250-6,-8,SK330-6,-8,SK460-8.
欢迎广大新老客户前来洽谈，咨询！
