产品信息
|

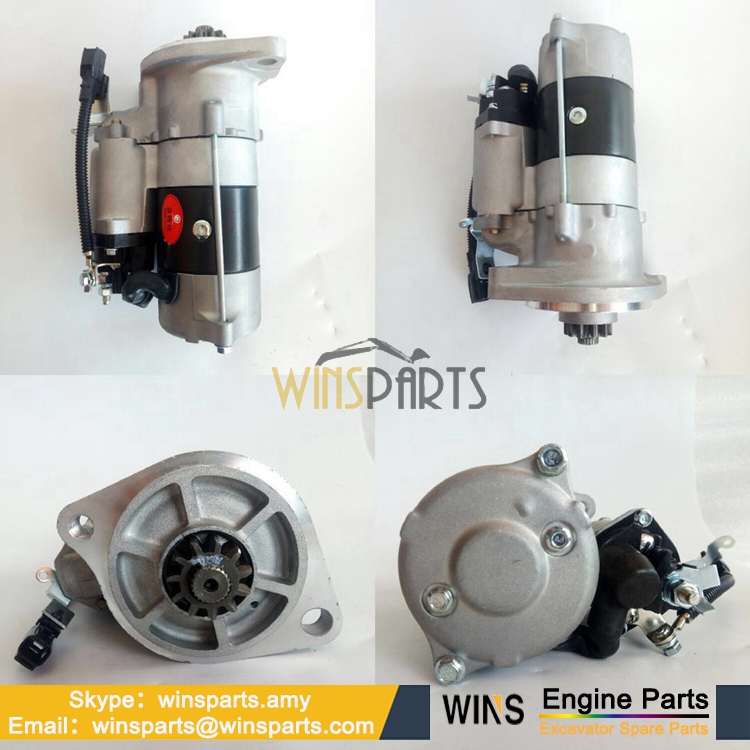

VH281002894A 281002894A 原装日野J05E启动马达24V-50A用于神钢SK200-8 SK250-8 SK210LC-8 挖掘机配件
|
|
产品零件号:
|
VH281002894A
|
产品名称:
|
启动马达
|
|
挖掘机号码:
|
SK200-8 SK250-8 SK210LC-8
|
挖掘机品牌:
|
KOBELCO/CATERPILLAR/HITACHI
|
|
发动机号码:
|
J05E
|
发动机品牌:
|
ISUZU/HINO/MISTUBISHI
|
|
|
编号（REF）
|
数量(Qty)
|
件号(Part No)
|
品名(Part Name)
|
|
28255
|
1
|
VH282551040A
|
SHAFT Assy, Start
|
|
28253A
|
1
|
VH282531080A
|
GEAR
|
|
28253
|
3
|
VH282531070A
|
GEAR
|
|
28252
|
1
|
VH282521880A
|
BEARING
|
|
28251
|
1
|
VH282511090A
|
PINION Start
|
|
28227
|
AR
|
VH282271020A
|
GREASE Starter Repair Service (Multemp Ac-N)
|
|
28227
|
AR
|
VH282271010A
|
GREASE Starter Repair Service (Pyronoc No.2)
|
|
28199
|
1
|
VH281991100A
|
PROTECTOR Dust Start
|
|
28171
|
1
|
VH281711210A
|
HYD CONNECTOR Vk/Lead Wire
|
|
28168A
|
2
|
VH281681370A
|
RING Retainer
|
|
28168
|
1
|
VH281681400A
|
RING Retainer
|
|
28160
|
1
|
VH281601760A
|
ARMATURE Assy, Start
|
|
28150
|
1
|
VH281502554A
|
SWITCH Assy, Start Magnet
|
|
28143
|
4
|
VH281431200A
|
SPRING Start Brush
|
|
28142A
|
1
|
VH281421540A
|
BRUSH Start
|
|
28142
|
1
|
VH281421530A
|
BRUSH Start
|
|
28140
|
1
|
VH281401680A
|
HOLDER Assy, Start Brush
|
|
28138
|
2
|
VH281381370A
|
PACKING
|
|
28133
|
1
|
VH281332400A
|
FRAME Commutator End
|
|
28120
|
1
|
VH281201900A
|
YOKE Assy, Start
|
|
28118F
|
1
|
VH281181570A
|
PLATE
|
|
28118E
|
1
|
VH281181561A
|
PLATE
|
|
28118D
|
1
|
VH281181550A
|
PLATE
|
|
28118C
|
1
|
VH281181540A
|
PLATE
|
|
28118B
|
1
|
VH281181530A
|
PLATE
|
|
28118A
|
1
|
VH281181520A
|
PLATE
|
|
28118
|
1
|
VH281181450A
|
PLATE
|
|
28117A
|
1
|
VH281171310A
|
PACKING
|
|
28117
|
1
|
VH281171300A
|
PACKING
|
|
28115
|
1
|
VH281152231A
|
HOUSING
|
|
28113
|
1
|
VH281131360A
|
LEVER Pinion Drive
|
|
28112E
|
2
|
VH281122610A
|
BOLT Housing Set
|
|
28112A
|
2
|
VH281122000A
|
BOLT Housing Set
|
|
28111A
|
1
|
VH281111480A
|
DRIVE Bosh, Housing
|
|
28111
|
1
|
VH281111470A
|
DRIVE Bosh, Housing
|
|
28100
|
1
|
VH281002894A
|
STARTER MOTOR Assy (24V-5Kw)
|
|
28011
|
1
|
VH280111640A
|
CLUTCH Sub Assy, Start
|
|
28112
|
2
|
VH281122620A
|
BOLT Housing Set
|
|
16
|
1
|
VH894101290A
|
SENSOR Assy
|
|
15
|
1
|
VH985119116A
|
O-RING
|
|
14
|
1
|
VH834601510A
|
SWITCH Assy, Level Warning
|
|
13
|
1
|
YN30T01002P1
|
ELEMENT Filter Fuel E/G Hino pn VH23390E0010
|
|
12
|
1
|
YN30T01001P1
|
ELEMENT Filter Oil E/G Hino pn VH156072190A
|
|
11
|
1
|
VH156601090A
|
PLUG Assy, Oil
|
|
10
|
1
|
VH040166104A
|
THERMOSTAT Kit
|
|
9
|
1
|
VH270402192A
|
ALTERNATOR Assy
|
|
7
|
1
|
VH900149375A
|
BELT V-belt (2 Pieces Set) (2)
|
|
1-1B
|
1
|
YN22E00263S002
|
Software Not serviced
|
|
1-1A
|
1
|
YN22E00263S001
|
CONTROLLER Unprogrammed - Hino pn VH89661E0010
|
|
6
|
1
|
YN20M01494D1
|
BELT V (conditioner, Air) (COG B66)
|
|
5
|
1
|
YN05P01495P1
|
HOSE
|
|
4
|
1
|
YN05P01439P1
|
HOSE
|
|
3
|
1
|
YN05P01494P1
|
RADIATOR HOSE
|
|
2
|
1
|
YN05P01479P1
|
HOSE Radiator
|
|
|
1
|
YN02P00042F1
|
ENGINE Assy , BTW YQ11-06077 & YN11-46018
|
|
43466
|
1
|
YN22E00263F1
|
CONTROLLER Assy
|
|
1
|
1
|
YN02P00028F1
|
ENGINE Assy , BTW YN11-45001 & YN11-46017
|
|
1
|
1
|
YN02P00028F1
|
ENGINE Assy , BTW YQ11-06001 & YQ11-06076
|
|
|
AR
|
YN02P00031F1
|
Instal (See Fig No.025-01-1,2)
|
|
|
AR
|
YN02P00034F1
|
Instal
|
|
8
|
1
|
VH281002894A
|
STARTER MOTOR Assy
|
|
产品介绍
本公司成立于1998年，一直致力于工程机械纯正零件的批发与销售公司，专注批发零售进口神钢挖掘机发动机配件销售的供应商，公司具有完善的日本进口纯正原厂渠道，一手货源，省去中间商差价；十余年来公司秉承“产品第一，优质服务，客户至上，诚实守信”的经验销售原则，以完备齐全的零配件，实惠的价格的服务于国内外广大的工程机械同行。
公司主营神钢挖掘机KOBELCO纯正配件，及日本原厂三菱重工，日野，五十铃发动机纯正原装配件：发动机缸体，缸盖，曲轴，凸轮轴，连杆，活塞缸套组件，喷油器，柴油泵，进排气门、进排气门座圈、气门油封导管、气门弹簧、等等原装发动机配件；
液压配件: 泵胆平面、配流盘、柱塞、九孔板、传动轴、先导泵、止推板、摇摆座及总成、球头、提升器等液压件；
电器件：发电机、启动马达、油门马达、空调件、电脑板、显示屏、电磁阀、传感器、感应器、熄火开关、点火开关等原厂电器件；
底盘件：链条总成、链板、螺丝、连接销、支重轮、托链轮、引导轮、驱动齿、斗齿、齿根、挖斗等底盘件
日野：J05E,J08E,P11C.
三菱: D04FR,4M40,6D16,6D22,6D24,6D31,6D34.
五十铃:4HK1,4JJ1,4LE1,4JB1,4BG1,6HK1,6WG1,6BG1,6UZ1,6BD1.
神钢挖掘机：SK60,SK75,SK130-8,SK140-8,SK200-6,-8,SK250-6,-8,SK330-6,-8,SK460-8.
欢迎广大新老客户前来洽谈，咨询！
