编号（REF）
|
数量(Qty)
|
件号(Part No)
|
品名(Part Name)
|
|
C5
|
1
|
ZN18F20016
|
NUT M20x1.50mm
|
|
C4
|
3
|
ZW16X12000
|
WASHER ID 12 x OD 24 x Th 2.3mm
|
|
C3
|
1
|
ZS18F20120
|
SCREW M20x1.50x120mm
|
|
C2
|
3
|
ZS18C12025
|
SCREW M12x1.75x25mm
|
|
C1
|
1
|
YN55V00037F2
|
FLEXIBLE JOINT SWIVEL, See Page 8-7
|
|
|
AR
|
YN19H00040F2
|
FLEXIBLE JOINT ASSEMBLY, SWIVEL
|
|
B13
|
2
|
ZW26X10000
|
LOCK WASHER ID 10 x OD 18 x Th 2.5mm
|
|
B11
|
14
|
ZM32C12025
|
BOLT M12x1.75x25mm (Incls. Washer & Lockwasher)
|
|
B10
|
2
|
ZS18C10014
|
SCREW M10x1.50x14mm
|
|
B8
|
24
|
ZS18C10014
|
SCREW M10x1.50x14mm
|
|
B7
|
1
|
2418T12274
|
PACKING 90x50x Th 05mm -- Rubber
|
|
B6
|
1
|
2422T556
|
PLATE 90x50x Th 06mm
|
|
B5
|
6
|
LC63D00002P1
|
GUIDE TRACK GUIDE
|
|
B4
|
1
|
LC01F01010P1
|
COVER
|
|
B3
|
1
|
LC01F01009P1
|
COVER
|
|
B2
|
1
|
LC01F01002P1
|
GUARD
|
|
B1
|
1
|
LC01F01001P1
|
GUARD
|
|
|
AR
|
LC01F00003F2
|
LOWER GROUP
|
|
A2-4
|
2
|
LC07F01014P1
|
GUIDE
|
|
A2-3
|
2
|
LC07F01013P1
|
GUIDE
|
|
A2-2
|
4
|
LC41C00005P1
|
STEP
|
|
A2-1
|
4
|
LC07F01019P1
|
SUPPORT
|
|
A1
|
1
|
LC02F00005P1
|
FRAME LOW
|
|
0
|
1
|
LC15V00005F4
|

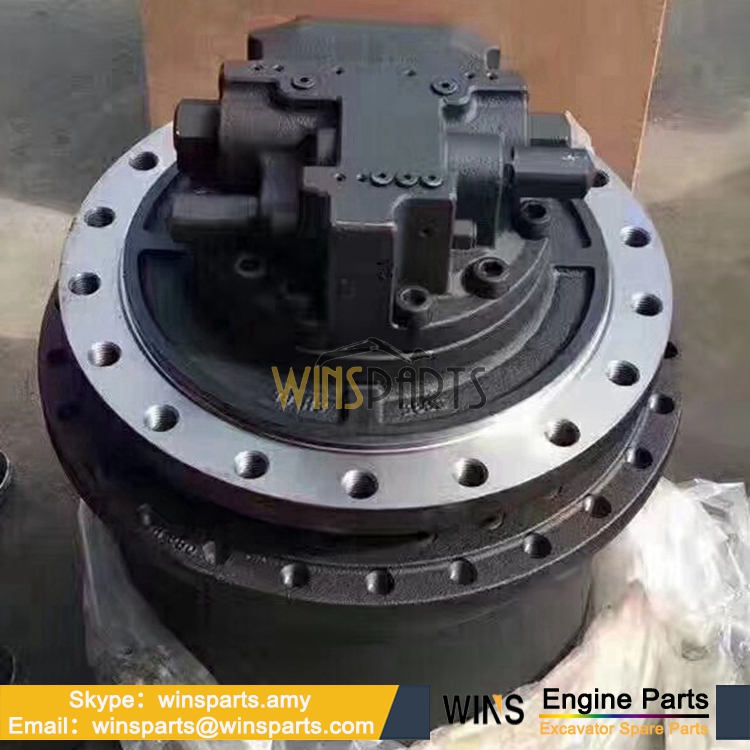

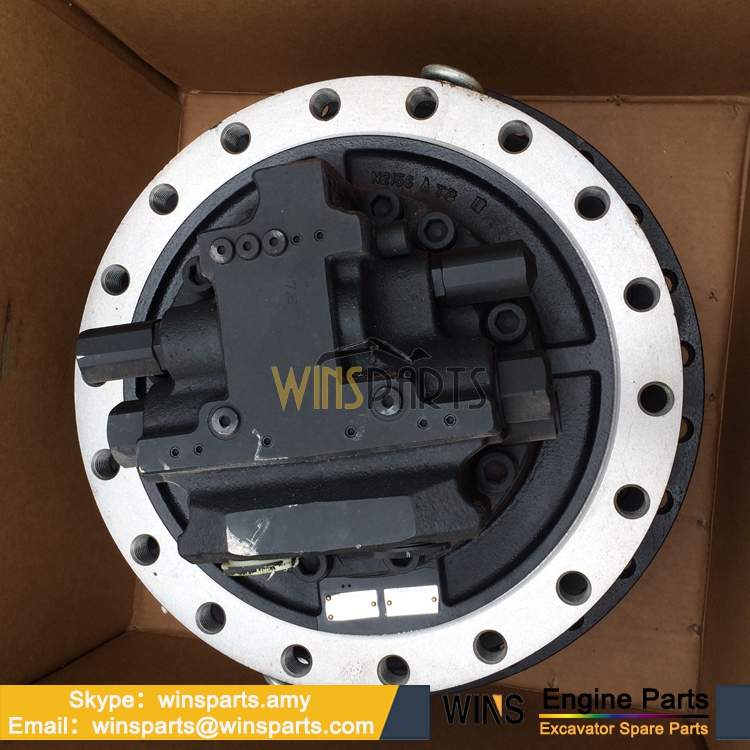

HYDRAULIC MOTOR ASSEMBLY, TRAVEL, See Page 8-41
|
|
D4
|
52
|
ZW13H20000
|
WASHER ID 20 x OD 40 x Th 4.5mm
|
|
D3
|
52
|
ZS13C20055
|
SCREW Screw -- M20x2.50x55mm
|
|
D2
|
36
|
2420P1613D4
|
SCREW M24x2.0x65mm
|
|
D0
|
2
|
LC15V00005F4
|
HYDRAULIC MOTOR ASSEMBLY, PROPELLING, See Page 8-41
|
|
|
AR
|
LC53D00001F1
|
MOTOR INSTALLATION, PROPEL
|
|
C5
|
1
|
ZN18C16013
|
NUT M16x2.0mm
|
|
C4
|
3
|
ZW16X12000
|
WASHER ID 12 x OD 24 x Th 2.3mm
|
|
C3
|
1
|
ZS18C16110
|
SCREW M16x2.0x110mm
|
|
C2
|
3
|
ZS18C12025
|
SCREW M12x1.75x25mm
|
|
C1
|
1
|
24100J15939F1
|
FLEXIBLE JOINT
|
|
|
AR
|
YN19H00001F1
|
JOINT ASSY. INSTALLATION, SWIVEL
|
|
B23
|
28
|
ZS23C24050
|
SCREW CAPSCREW -- M24x3.0x50mm, (F2 Only)
|
|
B22
|
2
|
LC01FU1007P1
|
GUARD GUARD, ROCK, (F2 Only)
|
|
B21
|
8
|
ZW26X12000
|
LOCK WASHER ID 12 x OD 21 x Th 3.0mm
|
|
B20
|
8
|
ZS18C12035
|
SCREW M12x1.75x35mm
|
|
B19
|
4
|
YN41CU0005P1
|
STEP 150mm Long (6in)
|
|
B18
|
2
|
LC01FU1005P1
|
COVER (F1 & F2 Only)
|
|
B17
|
4
|
LQ01FU1015P1
|
BOLT M24x3.0x50mm Long
|
|
B16
|
2
|
ZN23C24027
|
NUT M24x3.0mm
|
|
B15
|
2
|
ZP16D05045
|
PIN SPLIT
|
|
B14
|
2
|
LQ01FU1016P1
|
BOLT M24x3.0x110mm Long
|
|
B13
|
2
|
ZW26X10000
|
LOCK WASHER ID 10 x OD 18 x Th 2.5mm
|
|
B12
|
16
|
ZW13H24000
|
WASHER ID 24 x OD 39 x Th 4.0mm
|
|
B11
|
14
|
ZM32C12025
|
BOLT M12x1.75x25mm (Incls. Washer & Lockwasher)
|
|
B10
|
2
|
ZS18C10014
|
SCREW M10x1.50x14mm
|
|
B9
|
16
|
ZS13C24040
|
SCREW M24x3.0x40mm, (F1 Only)
|
|
B8
|
24
|
2420P1613D3
|
SCREW M24x2.0x60mm
|
|
B7
|
1
|
2418T12274
|
PACKING 90x50x Th 05mm -- Rubber
|
|
B6
|
1
|
2422T556
|
PLATE 90x50x Th 06mm
|
|
B5
|
2
|
LC63D00002P1
|
GUIDE TRACK
|
|
B4
|
1
|
LC01FU1004P2
|
COVER - RH
|
|
B3
|
1
|
LC01FU1003P2
|
COVER - LH
|
|
B2
|
1
|
LC01FU1002P2
|
COVER - RH
|
|
B1
|
1
|
LC01FU1001P2
|
COVER - LH
|
|
F2
|
AR
|
LC01FU0001F2
|
LOW, GROUP - High & Wide - Full Length Rock Guard
|
|
F1
|
AR
|
LC01FU0001F1
|
LOW, GROUP - High & Wide
|
|
|
|
|
PLATFORMS
|
|
A1
|
1
|
LC02FU0011P1
|
FRAME, LOW - High & Wide
|
|
D1
|
2
|
2404N431
|
DRIVING SPROCKET
|
|
2
|
1
|
LC53D00003F2
|
HYDRAULIC MOTOR REDUCTION See Page 8-47
|
|
1
|
1
|
LC15V00007F3
|
HYDRAULIC MOTOR ASSEMBLY, See Page 8-43
|
|
|
1
|
LC15V00005F4
|
HYDRAULIC MOTOR ASSEMBLY, PROPELLING
|
