J98A2005 斗山大宇 SOLAR 400LC-V DH370 DH350

配件号码：J98A2005
产品名称：回转液压配件
发动机号：-
适用机械：SOLAR 400LC-V DH370-7 DH350

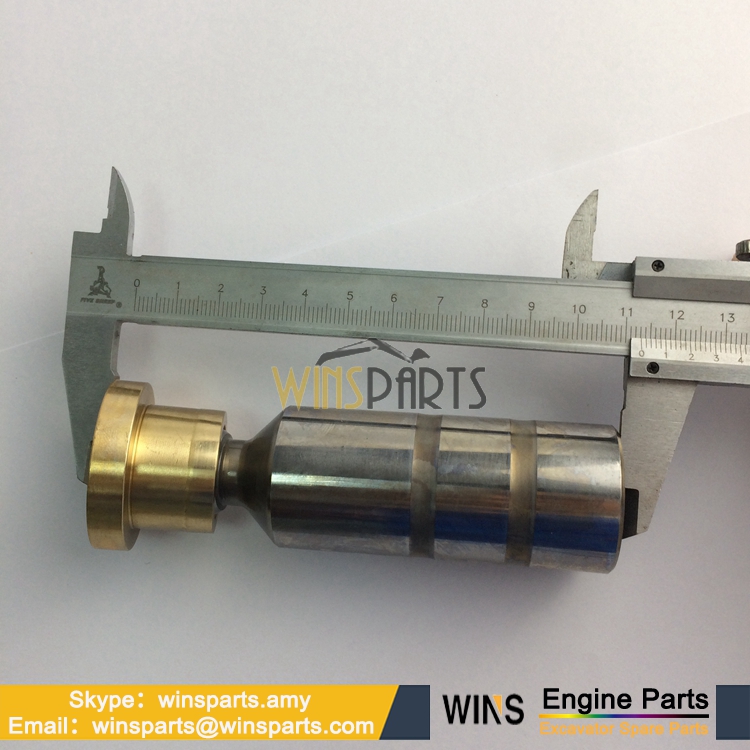

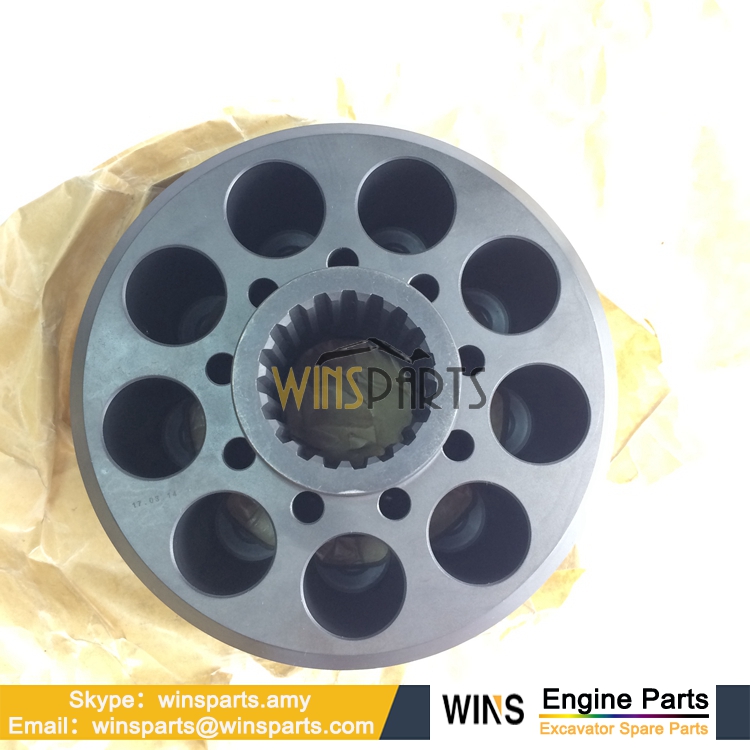

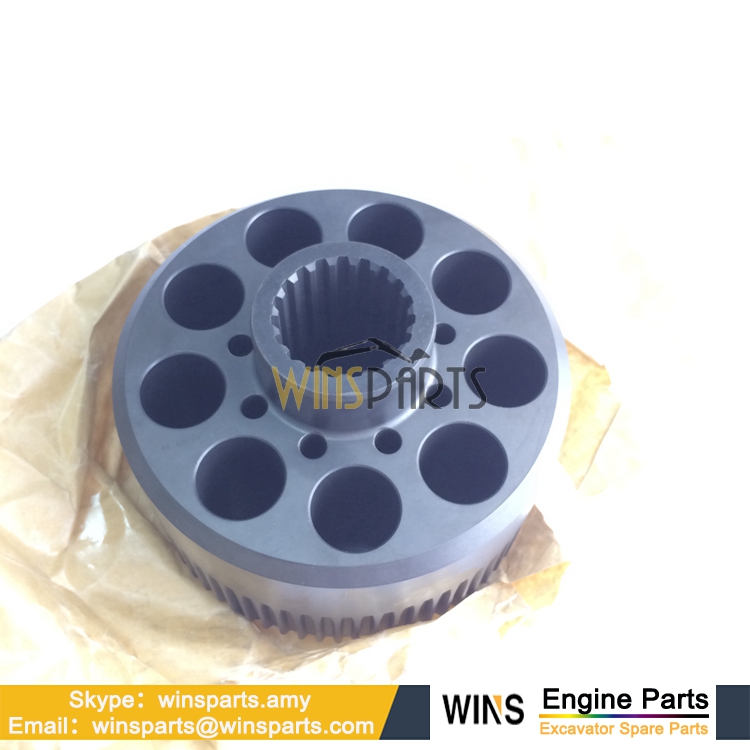

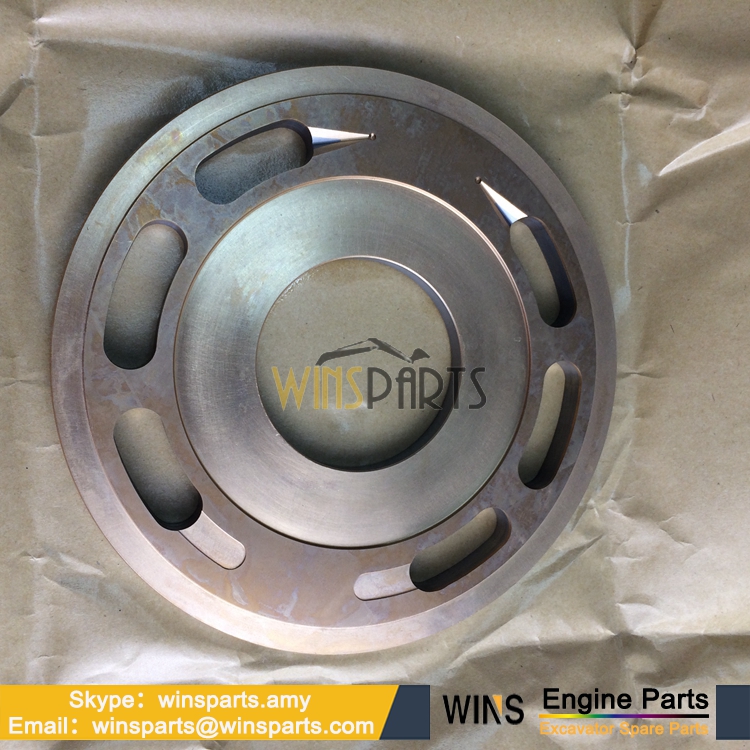

产品描述：J98A2005 斗山大宇 SOLAR 400LC-V DH370-7 DH350 330LC-V 340LC-7 340LC-V 420LC-V挖掘机液压泵回转马达头配件泵胆配流盘九孔板柱塞
在线订购

产品信息

J98A2005 斗山大宇 SOLAR 400LC-V DH370-7 DH350 330LC-V 340LC-7 340LC-V 420LC-V挖掘机液压泵回转马达头配件泵胆配流盘九孔板柱塞

产品零件号:

J98A2005

产品名称:

回转液压配件

挖掘机号码:

DH370-7 DH350

挖掘机品牌:

KOBELCO/CATERPILLAR/HITACHI

发动机号码:

发动机品牌:

ISUZU/HINO/MISTUBISHI

编号（REF）	件号(Part No)	数量(Qty)	品名(Part Name)
*.	K9000947	[1]	KIT;SEAL
-.	401-00457B	[1]	MOTOR;SWING
1	K9000949	[1]	BODY
14	K9000937	[3]	PLATE;FRICTION
15	K9000938	[3]	PLATE
16	K9000939	[1]	PISTON;BRAKE
17	2180-1216D155	[2]	O-RING
18	K9000940	[18]	SPRING
19	K9000941	[1]	COVER
2	K9000403	[1]	SEAL;OIL
20	2.109-00176	[1]	BEARING;NEEDLE
21	S5711031	[2]	PIN;PARALLEL
23	S2227661	[2]	BOLT;SOCKET
24	1.426-00010	[2]	POPPET
25	1.131-00072	[2]	SPRING
26	1.181-00103	[2]	PLUG;DRAIN
27	S8000291	[2]	O-RING
28	K9000942	[2]	VALVE;SWING REACTIONLESS
29	K9000943	[2]	PLUG
3	K9000924	[1]	BEARING;ROLLER
30	S8000121	[2]	O-RING
31	S8000181	[2]	O-RING
32	K9000944	[2]	RING;BACK UP
33	K9000945	[2]	RELIEF VALVE ASS'Y
33A.	S8000311	[1]	O-RING
33B.	S8060310	[1]	RING;BACK-UP
33C.	S8000261	[1]	O-RING
33D.	S8000241	[1]	O-RING
33E.	S8060240	[1]	RING;BACK-UP
34	K9000946	[1]	TIME DELAY VALVE ASS'Y
34A.	S8000071	[1]	O-RING
34B.	S8000151	[2]	O-RING
35	S2206161	[3]	BOLT;SOCKET
36	420-00112	[3]	PLUG
37	S8000111	[3]	O-RING
38	2180-1216D154	[1]	O-RING
39	K9000948	[1]	BUSHING
4	S6510850	[1]	RING;LOCK
5	K9000925	[1]	SHAFT
6	K9000926	[1]	PIN;PARALLEL
7	K9000927	[1]	RING;STOP
8	K9000928	[1]	PLATE;SHOE
9	K9000929	[1]	KIT;ROTARY
9A.	K9000930	[1]	CYLINDER BLOCK KIT
9Aa.	K9000931	[1]	BLOCK;CYLINDER
9Ab.	K9000932	[1]	PLATE;VALVE
9B.	1.131-00070	[9]	SPRING
9C.	K9000933	[1]	KIT;RETAINER
9Ca.	K9000934	[1]	GUIDE;BALL
9Cb.	K9000935	[1]	PLATE;SET
9D.	K9000936	[1]	PISTON KIT
.	401-00229C	[-]	SWING DEVICE
1	K1004449	[1]	SWING DEVICE SUB ASS'Y
1	K1004449A	[1]	SWING DEVICE SUB ASS'Y
1	K1004449B	[1]	SWING DEVICE SUB ASS'Y
10	160-00020	[1]	CAP
11	124-00208D2	[1]	CLAMP
12	120-00276	[1]	BOLT M8X1.25X12
13	2181-4112	[1]	ADAPTER
1A.	404-00096B	[1]	REDUCTION GEAR;SWING
1A.	404-00096C	[1]	REDUCTION GEAR;SWING
1A.	404-00096E	[1]	REDUCTION GEAR;SWING
1B.	401-00457B	[1]	MOTOR;SWING
1D.	DS2059373	[1]	HOSE PF1/2-420L
1E.	2181-1950D3	[1]	PLUG
1F.	S8000181	[1]	O-RING
1G.	2181-1110D3	[2]	. ADAPTER
1H.	140-00805	[1]	PIPE
1I.	2119-1063A	[1]	CAP
1J.	121-00010D3	[1]	. NUT
1K.	181-00698	[1]	REDUCER
1L.	S5011113	[1]	. WASHER
2	S0774766	[12]	BOLT M24X2.0X70
3	2114-1831A	[12]	. WASHER
4	2123-1717B	[2]	PIN;KNOCK
5	198-00028	[2]	CAP
6	2184-1046D169	[1]	HOSE PF1/4-1600L
7	181-00103	[1]	REDUCER
8	121-00006	[1]	NUT
9	S6710041	[1]	NIPPLE,GREASE
*.	K9002069	[1]	SEAL KIT;SWING MOTOR
-.	K1007543A	[1]	MOTOR;SWING
1	1.451-00145	[1]	BODY
10	1.131-00070	[9]	SPRING
11	1.427-00007	[1]	SEAT;BALL GUIDE
12	1.429-00008	[1]	GUIDE;BALL
13	*NA00834	[1]
14	1.409-00175	[1]	PISTON ASS'Y
15	1.412-00063	[4]	PLATE;FRICTION
16	1.412-00025	[4]	PLATE
17	1.409-00187	[1]	PISTON;BRAKE
18	2180-1217D160	[2]	O-RING
19	1.131-00071	[19]	SPRING
2	1.180-00523	[1]	SEAL;OIL
20	*NA00839	[1]	. HEAD
21	1.123-00042	[2]	PIN
22	1.109-00058	[1]	BEARING;NEEDLE
23	K9002105	[1]	COVER;REAR
24	S2218661	[7]	BOLT;SOCKET
25	S2219571	[1]	BOLT;SOCKET
26	1.426-00010	[2]	POPPET
27	1.131-00072	[2]	SPRING
28	1.181-00103	[2]	PLUG;DRAIN
29	S8000291	[2]	O-RING
3	1.109-00066	[1]	BEARING;ROLLER
30	1.420-00122	[2]	RELIEF VALVE ASS'Y
31	K9002106	[1]	VALVE;TIME DELAY
32	S2206161	[3]	BOLT;SOCKET
33	2181-1116D2	[3]	PLUG
34	K9000942	[2]	VALVE;SWING REACTIONLESS
35	K9000943	[2]	PLUG
36	S8000181	[2]	O-RING
37	K9000944	[2]	RING;BACK UP
38	S8000121	[2]	O-RING
39	2180-1217D159	[1]	O-RING
4	1.115-00100	[1]	RING;SNAP
40	1.110-00172	[1]	BUSHING
41	K9002107	[1]	ROTARY KIT
42	K9002108	[1]	CYLINDER BLOCK KIT
43	K9002109	[1]	RETAINER KIT
5	1.405-00025	[1]	SHAFT
6	1.123-00041	[1]	PIN
7	1.115-00371	[1]	RING;STOP
8	1.412-00113	[1]	PLATE;SHOE
9	*NA00427	[1]
.	2401-1258A	[-]	SWING DEVICE ASS'Y
1	2401-1273C	[1]	SWING DEVICE SUB ASS'Y
1	2401-1273E	[1]	SWING DEVICE SUB ASS'Y
1	2401-1273G	[1]	SWING DEVICE SUB ASS'Y
1	2401-1273	[1]	SWING DEVICE SUB ASS'Y
1	2401-1273A	[1]	SWING DEVICE SUB ASS'Y
1	2401-1273B	[1]	SWING DEVICE SUB ASS'Y
10	2186-9001	[1]	COCK
10	2186-9003	[1]	VALVE
10	186-00013	[1]	. COCK
11	2184-9086	[1]	HOSE;VINYL
11	184-00016	[1]	HOSE
1A.	2401-9291	[1]	MOTOR;SWING
1A.	2401-9309A	[1]	MOTOR;SWING
1B.	2404-1065	[1]	GEAR;PINION
1C.	2403-1046	[1]	COVER
1C.	2403-1046A	[1]	COVER
1D.	2120-1340A	[2]	BOLT M16X2.0X35
1D.	2120-1363	[4]	BOLT
1E.	2126-9001	[1]	WIRE
1E.	2126-9001	[2]	WIRE
1F.	2182-1706A	[1]	PIPE
1G.	2119-1063A	[1]	CAP
1H.	2181-1110D10	[1]	ADAPTER
1I.	2401-9290	[1]	GEAR;REDUCTION
1I.	2401-9290A	[1]	GEAR;REDUCTION
1I.	404-00095	[1]	GEAR;REDUCTION
2	S0774761	[12]	BOLT M24X2.0X70
2	S0774766	[12]	BOLT M24X2.0X70
3	2114-1831	[12]	WASHER;HARDEN
3	2114-1831A	[12]	. WASHER
4	2123-1717A	[2]	PIN;KNOCK
4	2123-1717B	[2]	PIN;KNOCK
5	S6710042	[1]	NIPPLE;GREASE
6	2184-1046D114	[1]	HOSE PF1/4-1350L
7	2181-4112	[2]	ADAPTER
8	2124-1084D3	[2]	CLIP;BAND
9	S8450006	[1]	CLAMP
9	S8450012	[1]	CLAMP
*.	2401-9309KT	[1]	SEAL KIT;SWING MOTOR
-.	2401-9309A	[1]	MOTOR;SWING
1	J98A2001	[1]	BODY
10	J98A2006	[9]	SPRING
11	J98A2007	[1]	SEAT;BALL GUIDE
12	J98A2008	[1]	GUIDE;BALL
13	J98A2009	[1]	PLATE;SET
14	J98A2010	[9]	PISTON ASS'Y
15	J98A2011	[4]	PLATE;FRICTION
16	J98A2012	[4]	PLATE
17	J98A2013	[1]	PISTON;BRAKE
18	WG048	[2]	O-RING
19	J98A2014	[19]	SPRING
2	OSAE3222	[1]	SEAL;OIL
20	J98A2015	[1]	PLATE;VALVE
21	J98A2016	[2]	PIN
22	NBTR425230	[1]	BEARING;NEEDLE
23	J98A2017	[1]	COVER;REAR
24	WBM1450	[7]	BOLT;WRENCH
25	WBM1495	[1]	BOLT;WRENCH
26	J98A2018	[2]	POPPET
27	J98A2019	[2]	SPRING
28	J98A2020	[2]	PLUG;DRAIN
29	P0026	[2]	O-RING
3	RBNUP2211	[1]	BEARING;ROLL
30	J98A2021	[2]	RELIEF VALVE ASS'Y
31	MS50S208	[1]	VALVE;TIME DELAY
